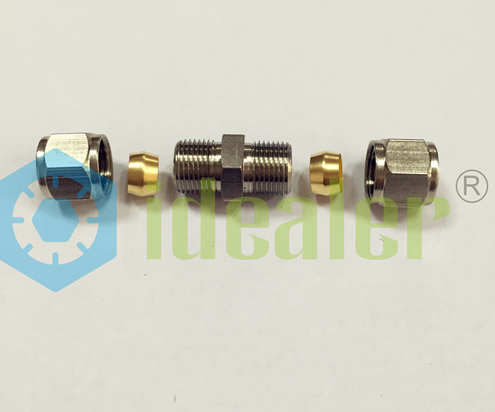

Brass Compression Fittings is realizing the clamping of the tube and the tightness between the tube and the body-fitting, by means of the compression of the ring called “olive”.
Ideal Bell uses Branded new materials, applied with Unique design and 100% test before delivery!
| Item Code | Tube Size(MM) |
|---|---|
| CFPUC3 | 3 |
| CFPUC4 | 4 |
| CFPUC6 | 6 |
| CFPUC8 | 8 |
| CFPUC10 | 10 |
| CFPUC12 | 12 |
| CFPUC15 | 15 |
| Item Code | Tube Size(Inch) |
|---|---|
| CFPUC5/32 | 5/32 |
| CFPUC1/4 | 1/4 |
| CFPUC5/16 | 5/16 |
| CFPUC3/8 | 3/8 |
| CFPUC1/2 | 1/2 |
◎ FEATURES
This series of fittings is called “compression fittings” because realizing the clamping of the tube and the tightness between the tube and the body-fitting, by means of the compression of the ring called “olive”.
The seats of the fittings, the olives and nuts are dimensioned in conformity with the DIN standards.Our Compression fittings can be both brass color or nickel-plated!
◎ SPECIFICATIONS
| Applicatoins | Hydraulic, oleodynamic and pneumatic circuits | |
| Recommanded Tubings | Copper and alluminium tubes. PA11 and PA6 | |
| Working Pressure Range | max. 60 bar | |
| Working Temperature Range | -4 ℉~160℉ | -15℃~70℃ |
| Remarks | The working pressures and working temperatures depend on which type of tube is used！ | |
About Body Color: You can choose Brass color or Nickle plated..
About Logo: Standard No logo, OEM can be on request.
About Packing: you can choose Standard No Logo Packing, Idealer Logo Packing Or OEM packing.
